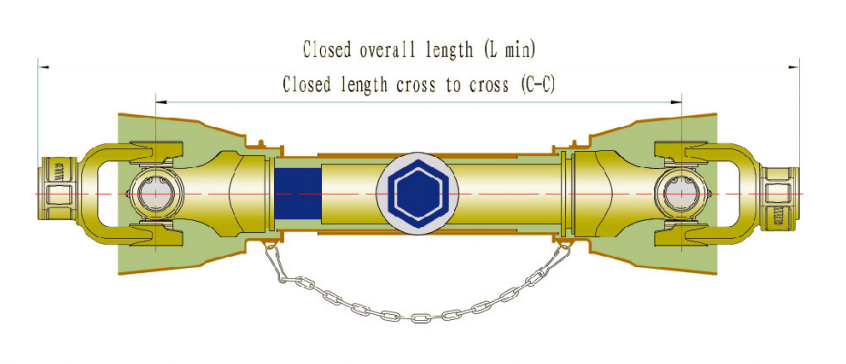

15D Hexagonal Tube Drive Shaft Seede

Yoke:Splined yoke / Plain Bore yoke / Tube yoke

Tube:Triangle /Lemon /Star /Involute Spline Tube

Yoke Processing:Forging or Casting

Plastic Guard:130/160/180 series

Color:yellow black etc.

Send email to us

Product Detail

Mode						Spline	Supporting horsepower (H.P)	Torque




	D×L (Cross)	a (Inner)	Code	A×B (Outer)	Code

03D	24×63	30	71	38×4	70	ASAE 11/8"Z6 13/8"Z6 13/8"Z21 13/4"Z20 13/4"Z6 11/2Z8 38×32×6-Z8 48×42×8-Z8 54×46×9-Z8 60×52×10-Z8 42×36×7-Z8 25×21.5×5-Z6 30×23×6-Z6 34×28×7-Z6 35×30×9-Z6 35×30×10-Z6 65×57×12-Z8 Customer Choice	20-30	250-300
035D	27×70						25-35	330-420

04D	27×74.5						25-45	380-500

042D	27×81.7	34	73	45×5	72		35-55	420-600
045D	30.2×80						40-60	450-650
047D	30×88						40-60	450-650
05D	30.2×92						40-65	700-900
06D	30.2×106.3						55-80	800-1000
062D	32×76						50-80	800-1000
063D	32×92						50-80	800-1100

064D	35×94						55-90	800-1100

065D	35×98						65-100	1000-1300
068D	36×89	40	75	52×6	74		65-100	1000-1300
07D	35×106.3						65-100	1000-1300
073D	38×102.3						70-120	1250-1600
075D	39×95						75-130	1650-2300
08D	39×118						80-150	1500-2000
